CIRUCL7-100P Zoom

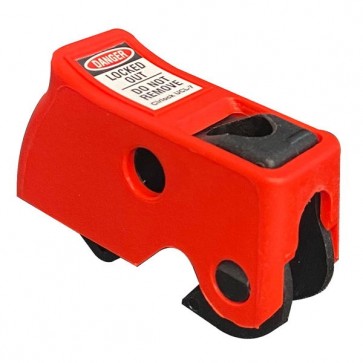

UNIVERSAL LOCKOUT DEVICE, RED TOOL FREE SUIT MCB's [100] PK

No Tool Universal Lockout Device for Miniature Circuit Breakers - Pack of 100
Part No. CIRUCL7-100P
CirlockClick to see more products from Cirlock
Features
NO TOOL Universal Lockout Device to help prevent un-intended energization of energy source.

Features & Benefits

  • Material: Sturdy Chemical Resistant Plastic with Metal screw
  • Dimensions: 50mm x 30mm x 15mm
  • Padlock Holes: 2 x 6mm (One vertical and one horizontal)
  • Red
  • Max toggle size it can clamp: 8mm

Application

  • Pull back red cover, clamp UCL-7 onto the Circuit Breaker toggle in the OFF position, tighten the screw in the device with your fingers
  • Once the screw is tight simply close the red cover and place your padlock through vertically or horizontally
  • NO TOOL is required
Details

Details

Part No. CIRUCL7-100P
Brand Cirlock
Pack Quantity 100
Unit Of Measure Pack
Colour Red
Dimensions (H x W x L) mm 30 x 15 x 50
