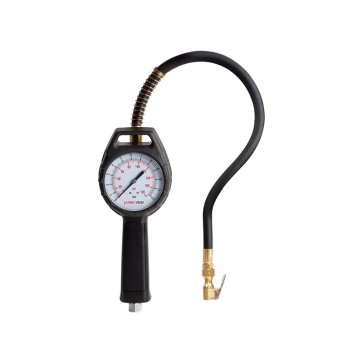

TYRE INFLATOR DIAL, TDR5000

Jamec PEM Tyre Infaltor TDR 5000
Part No. PEM11.0734
JAMEC PEMClick to see more products from JAMEC PEM
Features
The TDR5000 Tyre Inflator rounds out the extensive TDR range. With comfortable ergonomic design, large multi-scale gauge and tough aluminium/composite construction with impacting absorbing bumper, the TDR5000 is the ideal combination of simplicity and high performance, to suit any workshop or garage.

Features & Benefits

  • Dual scale 80mm dial gauge
  • Includes Certificate of calibration
  • Rubber impact protector on gauge
  • Tough, lightweight diecast aluminium internal body with composite outer casing
  • Accuracy exceeds EC Standards
  • IP Rated

Specifications

  • Chuck Type: Single Clip on
  • Scale 0 -180psi / 0-12 bar
  • Supply Pressure Max: 200 psi
  • Max Inflation: 174 psi
  • Inlet Size: 1/4" BSP
  • Hose length: 500 mm
  • Accuracy: ± 2 psi @ 25 - 75 psi
  • Inflation Volume L/min: 1200L/min @ 200 psi
  • Application: Industrial, Mechanical Workshops, forecourts and Tyre Stores
Details

Details

Part No. PEM11.0734
Brand JAMEC PEM
Unit Of Measure Each
Vendor Part Number 11.0734
