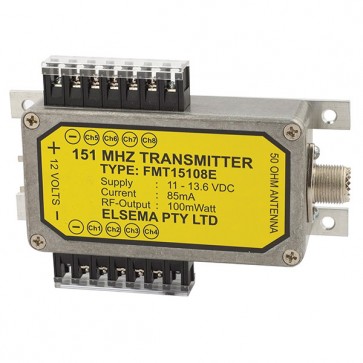

TRANSMITTER WITH CASE 151MHz 12VDC, 8 CHANNEL

Elsema 8-Channel 151MHz Transmitter, 8 Channel
Part No. FMT15108E
ElsemaClick to see more products from Elsema
Features
This FMT151 series has a transmission power of 100mW and a current consumption of only 85mA. It gives a controlled range of up to 5000 metres. The controlled operation can be any electronic or electrical operated device when used with the FMR151 series of receivers.

The channels are activated via screw type terminals onto which the user can connect reed switches, toggle switches, push buttons or any form of normally open (NO) contact.

Features & Benefits

  • 8 channel inputs
  • Built in LED indicates transmission
  • User selectable up to 8 different frequencies
  • Useable Operating Range: Up to 5000 metres, depending on installation and type of antenna used
  • Compatible Receivers: Elsema type FMR151 series
  • Selectable transmission modes, off delay, continuous and one burst
  • Not affected by natural or man-made electrical interference
Details

Details

Part No. FMT15108E
Brand Elsema
Unit Of Measure Each
Carton Quantity 1
Compendium Page # 603 (click to view)
