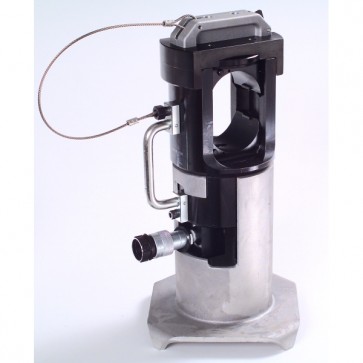

U' Frame High Capacity Compression Head, Includes Coupling and Alloy Stand

Part No. UTI#40BH/1

Features

Utilux 'U' Frame High Capacity Compression Head

Robust construction	Spring assisted ram retraction
Carry handle	Removable die cap

Range: Up to 1000mm²	Input Required: 700 bar 10,000psi, single acting pump
Oil volume Required: 308cc	Output 55 tonnes
Ram Stroke: 39.2mm	Die Set: '40' type dies, '38' type dies using #40dh die holder
Dies: AL: 95 to 630mm² CU: 70 to 1000mm²	Size: 146mm(dia) x 446mm(h), in stand
Weight: 22kg (tool only with die set loaded)	Packaging: Metal carry case
