TIMER, TWIN 24-240VAC/DC 1S-300H, DIN RAIL MOUNTABLE

Search:

All

Twin Timer

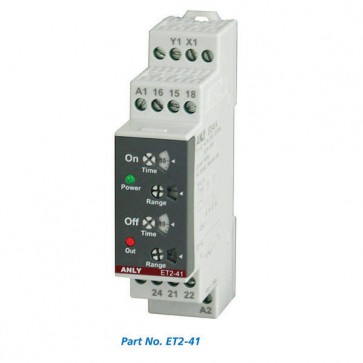

Part No. ET2-41

Features

Timers

Side operating voltage range	7 time range
Start (Y1) and Gate (X1) contact	22.5mm thin body design
Din Rail Mount:	Operating voltage: AC/DC(V): 24-240
Allowable operating voltage range: 85-110% of rated operating voltage	Rated frequency: 50/60Hz
Contact rating: 250V AC 5 A (resistive load)	Reset time: Max 0.1S

Power consumption: Approx. 3VA	Life: Mechanical: 5,000,000 times/Electrical: 100,000 times
Ambient temperature: -10 -+ 50° C	Ambient humidity: Max 85% RH
Weight: Approx. 93g	Operation mode: Circulation
Output mode: 2C	Time range: 7 ranges: 1s, 10s, 100s, 10m, 100m, 10h, 100h
