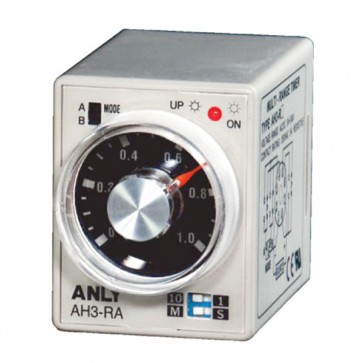

AH3-RA Zoom

TIMER M/RANGE 24-240 AC/DC 1S,10S,1M,10M

Wide Voltage Multi Range Analogue Timer
Part No. AH3-RA
AnlyClick to see more products from Anly
Features

Timers

Wide Voltage Multi Range Analogue Timer

  • Wide operating voltage in a single unit, from AC/DC 24-240V
  • Customised CMOS IC for low power consumption, high operation stability and extreme timing accuracy
  • Flush mount with Type Y-40 adaptor and surface mount with adaptor
  • Each timing series has 4 time ranges, selectable via DIP switch
  • 2 modes selectable via slide switch: Mode A (2C) for DPDT time-limiting output contacts Mode B (1A1C) for SPDT instantaneous and time-limiting output contacts
  • UL, C-UL recognised and CE certified
  • Mounting base PF083A-E sold separately

Specifications:

  • Operating voltage: AC/DC, 24-240V
  • Allowable operating voltage range: 85-110% of rated operating voltage
  • Rated frequency: 50/60 Hz
  • Contact rating: 250 VAC 5A (resistive load)
  • Reset time: Max 0.1S
  • Power consumption: Approx. 2VA
  • Life: Mechanical: 5,000,000 times/Electrical: 100,000 times
  • Ambient temperature: -10~ + 50 C
  • Ambient humidity: Max 85% RH
  • Weight: Approx. 120g
  • Output Contact: Mode A/B
  • Time Range: 6S, 60S, 6M, 60M
Details

Details

Part No. AH3-RA
Brand Anly
Unit Of Measure Each
Carton Quantity 1
Compendium Page # 607 (click to view)
