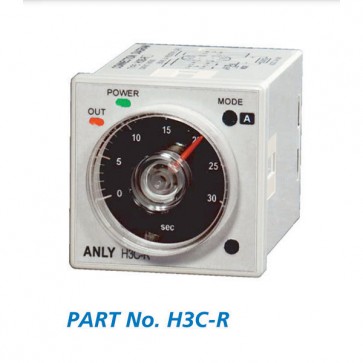

H3C-R Zoom

TIMER ANALOGUE 24-240VAC/DC MULTI RANGE 0.2SEC-300HR

Muiti Function Analogue Timer
Part No. H3C-R
AnlyClick to see more products from Anly
Features

Timers

Multi Function Analogue Timer

  • Wide operating voltage range in a single unit, AC/DC 24V-240V
  • 8 field-selectable output modes for various applications
  • 14 field-selectable time range, from 0.2 second to 300 hour
  • Includes 2C output contacts, instantaneous output contact, flicker and interval modes
  • Short body design, 68mm
  • Adaptor Y-57 for different flush mount
  • UL, C-UL, recognised and CE certified

Specifications:

  • Operating voltage: AC/DC, 24-240V
  • Allowable operating voltage range: 85-110% of rated operating voltage
  • Rated frequency: 50/60 Hz
  • Contact rating: 250 VAC 5A (resistive load)
  • Reset time: Max 0.1S
  • Power consumption: Approx. 3VA
  • Life: Mechanical: 5,000,000 times/Electrical: 100,000 times
  • Ambient temperature: -10~ + 50 C
  • Ambient humidity: Max 85% RH
  • Output contact: 2C or 1A2C
  • Time range: 1.2s, 3s, 12s, 30s, 1.2m, 3m, 12m, 30m, 1.2h, 3h, 12h, 30h, 120h, 300h
  • External reset: No
  • External start: No
  • External gate: No
  • Mounting base PF083A-E sold separately
  • Weight: Approx. 100g
Details

Details

Part No. H3C-R
Brand Anly
Unit Of Measure Each
Carton Quantity 1
Compendium Page # 607 (click to view)
