FLUPTI120-400 Zoom

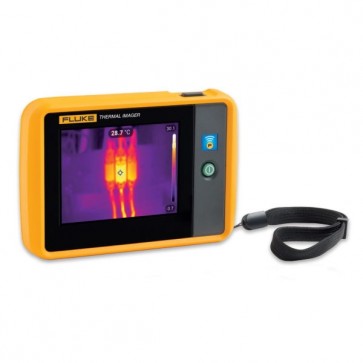

THERMAL IMAGER 9Hz, 3.5in LCD IP54, 120 x 90, -20C to +400C

Pocket Thermal Imager, Touchscreen 3.5" LCD, -20°C to 400°C
Part No. FLUPTI120-400
FlukeClick to see more products from Fluke
Features
  • Automatically organise and file thermal images with Fluke Connect® Asset Tagging
  • Fully radiometric thermal imager gives you measurement data to the pixel with 120 x 90 infrared resolution (10,800 pixels)
  • 3.5" LCD touchscreen display for easy troubleshooting
  • Can withstand drop up to 1 metre
  • IP54 enclosure rating
  • -20°C to 400°C temperature measurement range
  • IFOV (spatial resolution): 7.6 mRad
  • Infrared resolution: 120 x 90 (10,800pixels)
  • Field of view: 50° H x 38° V
  • Distance to spot: 130:1
  • Focus system: Fixed focus, minimum focus distance 50 cm
  • Mini USB used to transfer image to PC
  • Wifi: Yes
  • Fluke Connect® Instant Upload: Yes, connect your camera to your building's WiFi network, and images taken automatically upload to the Fluke Connect® system or your local server for storage and viewing on your PC (802.11 bgn (2.4 GHz))
  • Touchscreen display: 3.5" (landscape), 320 x 240 LCD
  • Frame rate: 9 Hz
  • Memory ≥ 2 GB internal flash memory
  • Internal rechargeable lithium ion battery
  • Battery life ≥ 2 hours continuous (without WiFi)
  • Battery charging time: ≤ 1.5 hours
Details

Details

Part No. FLUPTI120-400
Brand Fluke
Unit Of Measure Each
Carton Quantity 1
Vendor Part Number PTI120-400
Compendium Page # 544 (click to view)
Dimensions (H x W x L) mm 89 x 127 x 25
Weight (kg) 0.233
Ingress Protection Rating IP54
