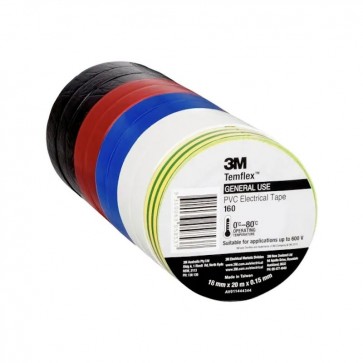

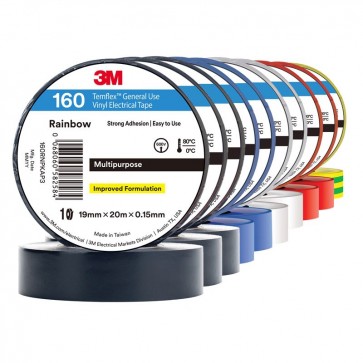

3M™ Temflex™ 160 General Use Vinyl Electrical Tape 18mm x 20m x 0.15mm - Rainbow Pack of 10 Assorted Colours

TAPE, VINYL ELECTRICAL 160 TEMFLEX, RBOW, 18mm x 20m [10]

3M™ Temflex™ 160 General Use Vinyl Electrical Tape 18mm x 20m x 0.15mm - Rainbow Pack of 10 Assorted Colours

Part No. 3M160-RBOW

Features

3M™ Temflex™ Vinyl Electrical Tape 160 is a multi-purpose, general use grade, nominal 0.15 mm thick electrical insulating tape composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, pressure-sensitive adhesive.

Features & Benefits

General purpose vinyl tape	Great for less demanding indoor applications
Conformable	Suitable for ambient indoor uses
Basic electrical and hardware application: phase identification; colour coding; harnessing

Specifications

Temperature Resistance (UL510): 0°C - 80°C	Temperature Resistance (CSA C22.2 No.197): -10°C - 80°C
Thickness: 0.15mm	Flame retardant to UL510
Elongation (%): 220	Adhesion to Steel (N/10mm): 2.4
Adhesion to Backing (N/10mm): 2.4	Dielectric Strength (kV/mil): 1.2
Certification UL510: Suitable as primary insulation on applications up to 600V at max temperature of 80°C and min temperature of 0°C on joints and splices in wires and cables in accordance with NFPA 70, National Electrical Code	Certification: CSA C22.2 No.197: Suitable as primary insulation on applications up to 1000V at max temperature of 80°C and min temperature of -10°C on joints and splices in wires and cables in accordance with Canadian Electrical Code, Part 1

Includes:

3 x Black	2 x Red
2 x Blue	2 x White
1 x Yellow/Green Stripe

Details

Part No.	3M160-RBOW
Brand	3M
Pack Quantity	10
Unit Of Measure	Pack
Vendor Part Number	AE019500766
Compendium Page #	425 (click to view)
Dimensions	0.15mm x 18mm x 20m
