3M160-BL Zoom

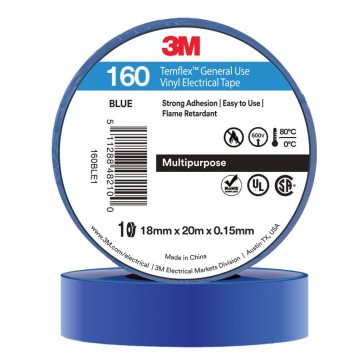

TAPE, VINYL ELECTRICAL 160 TEMFLEX, BLUE, 18mm x 20m

3M™ Temflex™ 160 General Use Vinyl Electrical Tape 18mm x 20m x 0.15mm - Blue
Part No. 3M160-BL
3MClick to see more products from 3M
Features
3M™ Temflex™ Vinyl Electrical Tape 160 is a multi-purpose, general use grade, nominal 0.15 mm thick electrical insulating tape composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, pressure-sensitive adhesive.

Features & Benefits

  • General purpose vinyl tape
  • Great for less demanding indoor applications
  • Conformable
  • Suitable for ambient indoor uses
  • Basic electrical and hardware application: phase identification; colour coding; harnessing

Specifications

  • Temperature Resistance (UL510): 0°C - 80°C
  • Temperature Resistance (CSA C22.2 No.197): -10°C - 80°C
  • Thickness: 0.15mm
  • Flame retardant to UL510
  • Elongation (%): 220
  • Adhesion to Steel (N/10mm): 2.4
  • Adhesion to Backing (N/10mm): 2.4
  • Dielectric Strength (kV/mil): 1.2

Certifications

  • UL510: Suitable as primary insulation on applications up to 600V at max temperature of 80°C and min temperature of 0°C on joints and splices in wires and cables in accordance with NFPA 70, National Electrical Code
  • CSA C22.2 No.197: Suitable as primary insulation on applications up to 1000V at max temperature of 80°C and min temperature of -10°C on joints and splices in wires and cables in accordance with Canadian Electrical Code, Part 1
Details

Details

Part No. 3M160-BL
Brand 3M
Unit Of Measure Roll
Vendor Part Number AE019500733
Compendium Page # 425 (click to view)
Colour Blue
Dimensions 0.15mm x 18mm x 20m
