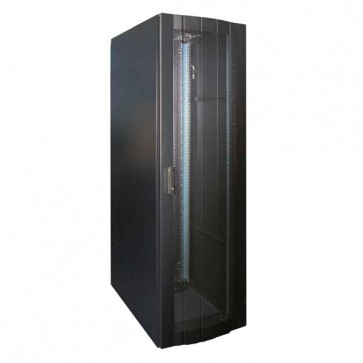

SERVER CABINET, 45RU, COMPLETE 800(W) x 800(D) x 2200(H)mm

ST Series 19" Network Server Cabinet - 800mm Wide

Part No. DYNRST45-8X8

Features

Network Server Cabinets

ST Series 19" Network Server Cabinets - 800mm Wide

Supplied with fixed shelves, fans, cage nuts, castors, levelling feet	Static loading: 1500kg
Width: 600mm, 800mm	Depth: 800mm, 1000mm
Removable one piece side panels	Double pipe profile frame connected by "3T" system
Front door hinged on right side	Front and rear doors are lockable
Front and rear doors can be opened to 130°	Vertical mounting profile can be adjusted in 25mm increments

Optional plinths available to bolt cabinet to floor by special request	Optional side vertical cable tray available by special request
Optional baying kit available for cabinet interconnection by special request	Mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm
Supplied complete or in Fast Assembly Flat Pack format (FP codes)	Gloss black colour and easy clean surface
Material: SPCC quality cold rolled steel	Finish: Degreasing, acid pickling, phosphoric cleaning, powder coated
Complies with IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7,GB/T3047.2-92, IP20 rated	1 Year Warranty on fans. 2 Year Warranty on cabinet. Subject to use within the static loading specifications and operation within normal environmental conditions

Includes:

3x fixed shelves	4x fans
25x cage nuts	4x castors
4x levelling feet	Dual front and rear mesh doors and dual 100mm front vertical cable management

Details

Details

Part No.	DYNRST45-8X8
Brand	DYNAMIX
Unit Of Measure	Each
Compendium Page #	478 (click to view)
Capacity	45RU
Dimensions WxDxH (External)	800 x 800 x 2200mm
Size (m³)	1.73
Weight (kg)	200

Downloads

View the Dynamix Product Guide online
