DYNRSR18-6X7 Zoom

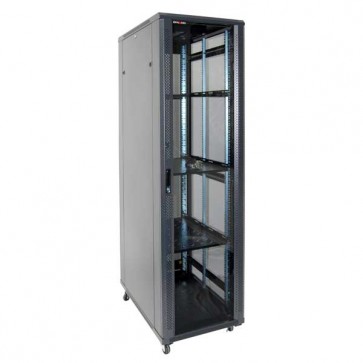

SERVER CABINET, 18RU, COMPLETE 600(W) x 700(D) x 1010(H)mm

SR Series 19" Network Server Cabinet - 600mm wide
Part No. DYNRSR18-6X7
DYNAMIXClick to see more products from DYNAMIX
Related Products
Features

Network Server Cabinets

SR Series 19" Network Server Cabinets - 600mm wide

  • Supplied with fixed shelves, fans, cage nuts, castors, levelling feet
  • Static loading: 800kg
  • Width: 600mm
  • Depth: 700mm
  • Optional plinths available to bolt cabinet to floor by special request
  • Optional vertical cable tray available by special request
  • Optional baying kit available for cabinet interconnection by special request
  • Optional mesh front door available by special request
  • Vertical mounting profile can be adjusted in 25mm increments
  • Supplied complete or in fast assembly flat pack format (FP codes)
  • Material: SPCC quality cold rolled steel, gloss black colour, easy clean surface
  • Mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm
  • Surface finish: Degrease, acid pickling, rust prevention, parkerizing, pure water cleaning and static electricity plastic painting
  • Complies with IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92, IP20 rated
  • Compatible with 19" International Standard and Metrical and ETSI standards
  • 2 Year Warranty on cabinets. Subject to use within the static loading specifications and operation within normal environmental conditions
  • 1 Year Warranty on fans

Includes:

  • 1x fixed shelf
  • 4x fans
  • 25x cage nuts
  • 4x castors
  • 4x levelling feet
Details

Details

Part No. DYNRSR18-6X7
Brand DYNAMIX
Unit Of Measure Each
Compendium Page # 479 (click to view)
Capacity 18RU
Dimensions WxDxH (External) 600 x 700 x 1005mm
Size (m³) 0.52
Weight (kg) 54
