SAW, CROSS CUT MITRE 216mm (XPS) 1800W CORDED Zoom

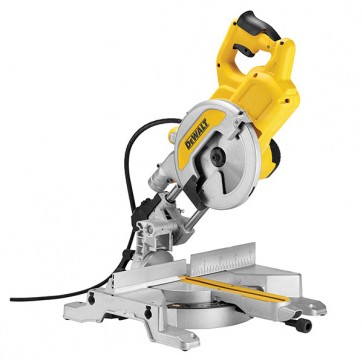

SAW, CROSS CUT MITRE 216mm (XPS) 1800W CORDED

216mm (8 1/2") Cross Cut Mitre Saw (XPS)
Part No. DEWDWS777-XE
DeWaltClick to see more products from DeWalt
Features

216mm Mitre Saw

  • The classic saw design improved and updated for the modern user
  • New 1800 Watt motor for powerful cutting in all materials
  • XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
  • New Single Point Dust Extraction Airlock compatible
  • The base and fence have been machined to meet the accuracy requirements of the most demanding applications
  • Head lock function allows the head to be fixed, restricting the traverse function for trim applications and ease of transportation
  • Integrated positive mitre stops at 15°, 22.5°, 30°, 45°, quick release mitre mechanism up to 50°
  • Sliding left hand fence with measuring scale for improved material support and management
  • Compact internal rail design for huge cutting capacity in a highly transportable format
  • Mitre Capacity (right/left): 50/50°
  • Max Depth of Cut (saws): 80mm
  • Bevel Capacity: 48°
  • Blade Bore: 30mm
  • Blade Diameter: 216mm
  • Blade Speed: 6300 rpm
  • Includes: TCT tooth saw blade, Blade Allen Keys, Material Clamp

Cutting Capacity:

  • @ 90°/45° (W x H): 173 x 62mm
  • @ 90°/90° (W x H): 270 x 62mm
  • @ 90°/90° (W x H): 270 x 60mm
  • @ 45°/90° (W x H): 189 x 62mm
  • @ 45°/90° (W x H): 190 x 60mm
  • @ 90°/45° (W x H): 270 x 48mm
  • Max cutting capacity @ 45°/45°: 190 x 48mm
Details

Details

Part No. DEWDWS777-XE
Brand DeWalt
Unit Of Measure Each
Vendor Part Number DWS777-XE
Weight (kg) 14
Dimensions (H x L x D) mm 590 x 490 x 55
Power Output 1100W
Power Input 1800W
