SAW, COMPOUND MITRE 305mm DBL BEVEL SLIDE (XPS), 1675W Zoom

SAW, COMPOUND MITRE 305mm DBL BEVEL SLIDE (XPS), 1675W

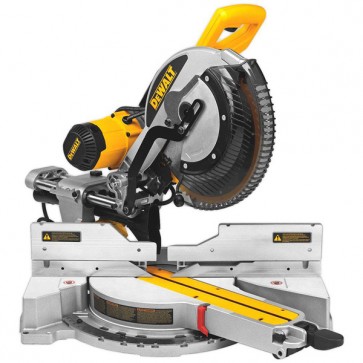

305mm (12") Double Bevel Sliding Compound Mitre Saw (XPS)
Part No. DEWDWS780-XE
DeWaltClick to see more products from DeWalt
Features

305mm (12") Double Bevel Sliding Compound Mitre Saw (XPS)

  • Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm
  • XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
  • Heavy duty durability with the ability to fully adjust your machine to mainatin accuracy over the life fo the tool
  • New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right
  • Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
  • Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° right
  • Long life Accuracy in Table and Fence Design
  • The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
  • Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wide
  • Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the jobsite
  • Outstanding dust control and deflection away from cutting area
  • The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications
  • Blade speed: 1900 - 3800rpm
  • Blade Diameter: 305mm
  • Blade bore: 25.4mm
  • Bevel Capacity: 49° left / 49° right
  • Mitre Capacity: 50° left / 60° right

Cutting Capacity:

  • 90/90° (W x H): 303mm x 110mm
  • 90/90° (W x H): 345mm x 76mm
  • 45/90° (W x H): 268mm x 63mm
  • 45/90° (W x H): 345mm x 44mm
  • 90/45° (W x H): 211mm x 112mm
  • 90/45° (W x H): 244mm x 76mm
  • 45/45° (W x H): 212mm x 76mm
  • Max depth of cut: 170mm
Details

Details

Part No. DEWDWS780-XE
Brand DeWalt
Unit Of Measure Each
Vendor Part Number DWS780-XE
Weight (kg) 24.8
Dimensions (H x L x D) mm 396 x 770 x 470
Power Output 960W
Power Input 1675W
