CIRUCL2EL Zoom

S/TOGGLE CB UNIVERSAL LOCKOUT HANG PACK

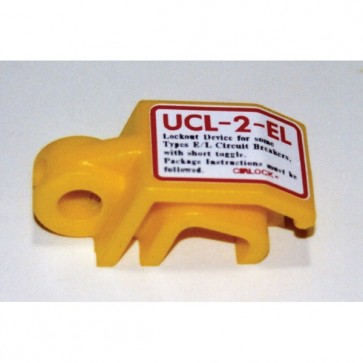

Cirlock Short Toggle CB Universal Lockout
Part No. CIRUCL2EL
CirlockClick to see more products from Cirlock
Features
Universal Lockout Device can help prevent unintended energisation of energy source.

Features & Benefits

  • Suitable for Certain Types of Moulded Case Circuit Breakers
  • Material: Nylon Plastic with ZP Metal set screw
  • Dimensions: 51mm x 25mm x 23mm wide

Application

  • Clamp UCL-2-EL onto the Circuit Breaker toggle in the OFF position, using a small screwdriver tighten the set screw in the device. Place a padlock through the hole to prevent access to the screw. Verify the breaker CANNOT be turned in the ON position.**
NOT SUITABLE FOR ALL MCCB'S.
Max toggle size it can clamp: 8mm. CANNOT be used on earlier type SAFE-T DRCB E/L CB with longer toggle.
Not suitable for all NHP Safe-T N15251. Check toggle shape if using on NHP breaker. Toggle needs to be rounded in shape.
Details

Details

Part No. CIRUCL2EL
Brand Cirlock
Unit Of Measure Each
Carton Quantity 100
Vendor Part Number UCL-2-EL
Compendium Page # 400 (click to view)
