FLUSMFT-1000/KIT Zoom

MULTIFUNCTION PV ANALYSER KIT WITH CURRENT CLAMP AND PROBE

Fluke Solar Multifunction PV Analyser Kit
Part No. FLUSMFT-1000/KIT
FlukeClick to see more products from Fluke
Features

Features & Benefits

  • All-in-one PV system test solution meeting IEC 62446-1 standards for Category 1 and Category 2 tests
  • Open-circuit voltage (VOC) measurement at the PV module/string up to 1000 V DC
  • Short-circuit (ISC) current measurement at the PV module/string up to 20 A DC
  • On-location I-V curve results compares manufacturer I-V curve data to measured data on the analyzer screen
  • Compatible with Fluke TruTest™ data management software
  • Full sequence safety testing –IEC 62446-1 Category 1:
  • Protective resistance earth (RLO/RPE)
  • Voltage on open circuit, including polarity (VOC)
  • Short circuit current (ISC)
  • Insulation resistance (RINS)
  • System performance testing –IEC 62446-1 Category 2:
  • I-V Curve tracing and analysis with TruTest™ software
  • Irradiance, temperature, tilt, and cardinal direction

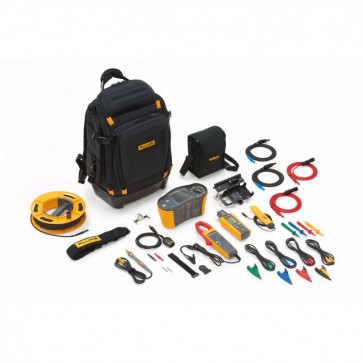

Kit Includes:

  • Fluke SMFT-1000-BP Professional Tool Backpack
  • Fluke SMFT-1000 Multifunction PV Analyser (including carry strap, fuse pack, adapter cable IRDA optical-to-USB, and zero adapter)
  • Fluke IRR2-BT Wireless Solar Irradiance Meter Pro (including Fluke 80PR-IRR External Temperature Probe, mounting bracket for solar panel, and carry case)
  • Fluke i100 AC/DC Current Clamp 100 A (including a Fluke TPAK Magnet Magnetic Meter Hanger)
  • Fluke TP1000 Test Probe with Remote Test Button, Fluke TL1000 Test Lead Set
  • Fluke TL1000- MC4 Test Lead Set
  • Fluke TL1000/30M Test Lead on Reel
  • Coupler set
  • 6 x AA Batteries
Details

Details

Part No. FLUSMFT-1000/KIT
Brand Fluke
Unit Of Measure Each
Compendium Page # 539 (click to view)
