SEAPOWERTEST-200 Zoom

MULTIFUNCTION ELECT. TESTER VOLTAGE, INSULATION, RCD

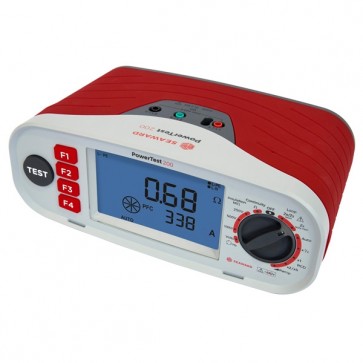

PowerTest 200 multifunction tester
Part No. SEAPOWERTEST-200
Seaward ElectronicClick to see more products from Seaward Electronic
Features
  • Voltage measurement up to 440V
  • Continuity test with autostart and null facility to zero out lead resistance
  • Insulation resistance measurement with 250, 500 & 1000V test voltages
  • RCD testing: Trip time, trip current (0.5, 1, 2 and 5 times the rating, dependent on device), auto test and ramp test
  • Test RCDs in auto mode and simply recall the test results once finished
  • Loop impedance and PSC or PFC readings can be shown on one screen
  • Non-trip loop impedance
  • Loop impedance - high current with auto start and direct readout of PSC
  • Phase rotation test will indicate the correct phase sequence
  • Integrated socket probe for easier testing

Includes:

  • Padded neck strap
  • Professional carry case
  • Mains lead
  • 1 each of black, red & green test leads - 1.2m
  • 1 each of black, red & green crocodile clips
  • Remote probe with test buttons
  • 6 x MN1500 (LR6) (AA) 1.5v batteries
  • Spare 1.6A 1000v HRC FF fuse
  • User manual
Details

Details

Part No. SEAPOWERTEST-200
Brand Seaward Electronic
Unit Of Measure Each
Compendium Page # 561 (click to view)
Dimensions (W x H x D) mm 260 x 55 x 105
Weight (kg) 0.836
