TIMER ANALOGUE 24-240VAC/DC MULTI RANGE 1SEC-600HR

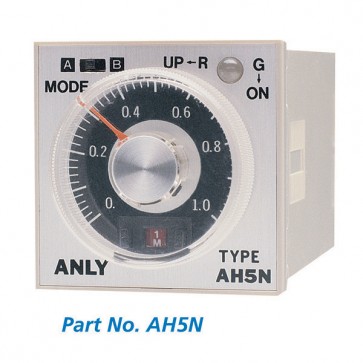

Multi Range Analogue Timer

Part No. AH5N

Features

Timers

1 second to 600 hours time range	Programmable by dip switches
24/240V AC/DC operating voltage	One timed and one user selectable set of contacts
Surface mounting kit available [Y50]	Mounting base PF083A-E sold separately

Full time range: 1s, 10s, 1m, 10m, 1h, 10h, 60h, 600h	Rated voltage: 24 to 240 volts AC/DC
Contact rating: 5 Amps AC resistive	Reset time: 0.2 seconds
Power consumed: 2VA	Surface mounting kit available [Y50]: Y50 & P3G-08
Dimensions: 48mm x 48mm x 48mm
