9010UO Zoom

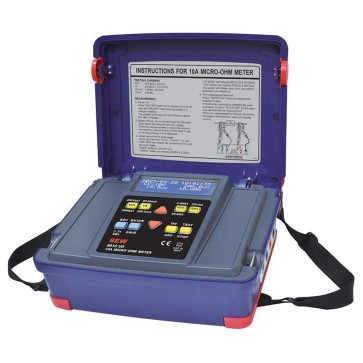

MICRO OHM METER, 10A LCD DISPLAY, MEMORY FUNCTION

Micro-Ohm Meter, 10A
Part No. 9010UO
SEWClick to see more products from SEW
Features

Features & Benefits

  • Maximum testing current of 10A
  • Maximum resolution of 0.1μΩ at 10A
  • Four terminal measurement
  • 4 Lines × 20 Characters LCD
  • Memory function (200 measurement results)
  • Auto power off
  • Low battery indication
  • Power source: Rechargeable battery DC14.8V 5200mAh 76.96Wh
  • Safety Standard: IEC/EN 61010-1 CAT III 300V EN 61326-1

Ranges:

  • 200.0μΩ / 2000μΩ 10A
  • 20.00mΩ / 200.0mΩ 1A
  • 2.000Ω / 20.00Ω 100mA
  • 200.0Ω 10mA

Specifications

  • Power source Rechargeable battery DC14.8V 5200mAh 76.96Wh
  • Safety standard IEC/EN 61010-1 CAT III 300V EN 61326-1
  • Accessories Instruction manual, test leads, charger & shoulder belt
Details

Details

Part No. 9010UO
Brand SEW
Unit Of Measure Each
Compendium Page # 545 (click to view)
Dimensions (H x W x L) mm 135 x 260 x 322
Weight (kg) 3.2
Operating Temperature 0~40°C
