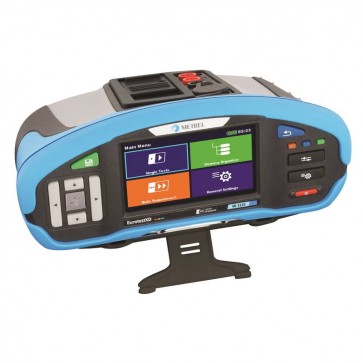

INSTALTEST IT-XD AUSTRALIAN ELECTRICAL INSTALLATION TESTER

InstalTest XD Touchscreen Multifunction Tester
Part No. SEAMI-ITXD
Features

Features & Benefits

  • Touch screen guarantees quick and intuitive operation. No confusing nested menus or rotary switches
  • Basic and advanced live and dead socket and installation testing with tick or cross result and fault diagnosis
  • Auto-sequences to verify sockets and installations in seconds by combining up to 6 single tests into a single push button sequence
  • Power & total harmonic distortion measurements
  • Light measurement
  • Wire tracing and fuse identification
  • Bar-code scanner input of asset IDs for high volume testing applications such as testing and recording 1,000s of RCD tests in industrial and medical applications
  • Logging of RCD push-button tests with a couple of keypresses. Ideal for high volume mandatory RCD testing and record keeping applications
  • Random phase RCD test selection for medical installations
  • User defined Auto Sequences allow users to combine multiple single electrical tests into a single key press operation
  • User defined Inspections allows users to generate their own visual and functional inspections, replacing paper-based checklists
  • Includes ES Manager PRO software license for installation structure, Auto Sequences and Inspections upload/download, and Excel output

Kit Includes:

  • Mains measuring cable
  • 3 x test leads
  • 3 x test probes
  • 3 x crocodile clips
  • 5ohm and 10ohm resistor box for socket test
  • AC adaptor
  • NiMH rechargeable batteries and soft carry case
  • ES Manager BASIC Reporting Software
Details

Details

Part No. SEAMI-ITXD
Brand METREL
Unit Of Measure Each
Compendium Page # 560 (click to view)
Dimensions 230 x 103 x 115mm
Voltage 0 -550V
Weight (kg) 1.3
Power Supply 9V DC (6 x 1.5V size AA)
