IDL30‐LC‐KIT Zoom

CONNECTOR KIT, LEVER, 2,3 & 5 PORT, C/-MATCHBOX CAR [70]PCE

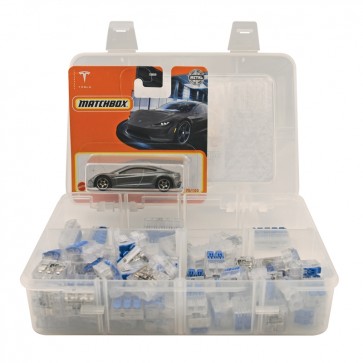

Ideal Lever Connector Kit – 70 Piece, Lever 2,3,5 Port. Supplied in a small tackle box with Bonus Matchbox Car.
Part No. IDL30-LC-KIT
Ideal ElectricalClick to see more products from Ideal Electrical
Features

Features & Benefits

  • For use in all applications up to 32A including lighting, access control, radial and final ring circuits
  • Releasable connector - for solid, stranded and flexible wires
  • Innovative levers - opens in the opposite direction of insertion points
  • Compact design - suits tight spaces
  • Easy to use - no need to lift the levers when using on solid wire
  • Continuity check port - for testing
  • Clear shell - allows for verification of connection
  • Secure your cables in seconds - no screwdriwer, no crimping, just strip, push, connect

Kit Contents

  • 30 x IDL30-0092J - 2-Port Lever Wire Connectors (32A)
  • 30 x IDL30-0093J - 3-Port Lever Wire Connectors (32A)
  • 10 x IDL30-0095J - 5-Port Lever Wire Connectors (32A)

Specifications

  • Rating: IEC 60998 - 32A, 450V, 85°C (ambient) / UL 486C - 600V, 105°C (working)
  • Approvals: Compliant with AS/NZS IEC 60998.1 and AS/NZS 60998.2.2 connecting device standards and UL 486C
  • Approvals:11:11CE, UKCA, UL and ENEC approved
The IDEAL Lever connectors utilise the latest connection technologies and can accommodate multiple wires of different types of sizes. It offers a fast, simple and cost-effective alternative to terminal strips allowing electrical professionals to save time and money on site while achieving easier, more consistent terminations for wires up to 4mm2 (12AWG) and 32 Amps.

Supplied in a small tackle box with Bonus Matchbox Car.
Details

Details

Part No. IDL30-LC-KIT
Brand Ideal Electrical
Pack Quantity 70
Unit Of Measure KIT
Vendor Part Number IDL30‐LC‐KIT
