AIRAW920MAX Zoom

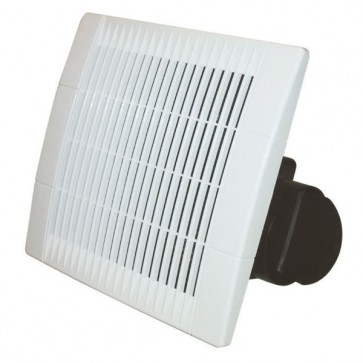

HEADER BOX FAN WITH 125mm OR 150mm SIDE DUCT OUTLET

Airware Header Box Fan with 125mm or 150mm Side Duct Outlet
Part No. AIRAW920MAX
AirwareClick to see more products from Airware
Features

Features & Benefits

  • Complies with Australian Standard 1668.2
  • Quietest and most powerful of any fan in its class
  • In-built gravity shutter prevents back draught when fan is not operating
  • Compact design, ideal for recessed ceiling mounting where limited ceiling space is a problem
  • Attractive diffuser efficient in removing steam and odours

Specifications:

  • ABS plastic housing
  • 125mm side ducted with backdraft shutter & 150mm adaptor
  • 30W centrifugal ball bearing motor
  • Air movement 234m³/hr
  • Cutout: 275 x 275mm
  • dBA 45@3m
  • IP24 rated
Details

Details

Part No. AIRAW920MAX
Brand Airware
Unit Of Measure Each
Carton Quantity 1
Vendor Part Number AW920MAX
Compendium Page # 273 (click to view)
Colour White
Cutout ømm 275 x 275
Dimensions (H x W x L) mm 155 x 320 x 320
Weight (kg) 2.2
Power Rating (W) 30
Ingress Protection Rating IP24
Extraction Performance (m³/h) 234
Noise Level (dBA) 45@3m
RPM 840
Fan Blade Ømm 100
Facia Shape Square
