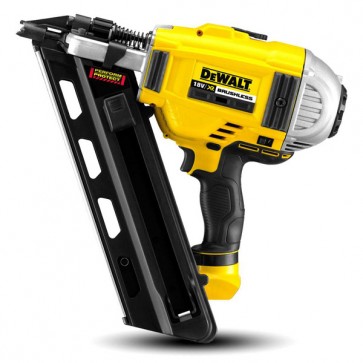

FRAMING NAILER, 18V XR 90mm BRUSHLESS 2 SPEED, BARE TOOL

18V XR Li-Ion Brushless 2 Speed 90mm Framing Nailer (Bare Unit)

Part No. DEWDCN692N-XE

Features

18V XR Li-Ion Two Speed Framing Nailer featuring BRUSHLESS motor technology

Two speeds - or power levels - to optimize the nailer for firing all lengths of nails	Benefit from longer run-time, quicker readiness to fire, less recoil and more durability when firing short nails
BRUSHLESS motor technology offers the power to fire a 90mm Ring Shank nail in Soft Wood and 63mm into Hard Woods	The sequential operating mode allows for precision placement and the bump operating mode provides the user with production speed
Mechanical rather than gas operation offers consistent performance at temperature between -20°C and 50°C and minimal cleaning/service requirements	Class leading vibration and sound figures, offer fantastic user protection
Versatile 30° - 34° magazine angle will accept most clipped head, and off centre round head paper tape or wire weld collated framing nails	Reversible belt/rafter hook provides increased portability and versatility on the job-site
Depths can be easily adjusted using the thumb wheel depth adjuster

Increased visibility and durability along with protection for work-surface from the non-mar contact-trip	Ergonomic tool design allows the nailer to fit easily between a 400mm center stud
Tool free stall / jam clearance minimises down time	Cordless design allows you to work without the inconvenience and safety risk of trailing leads
User can engage contact trip lock-off and prevent accidental dis-charge of fastene	Dry fire lockout ensures that the tool is protected from firing without nails in the magazine
Voltage: 18V	Nailer operating mode: Bump and Sequential
Magazine angle: 30-34deg rear load

Magazine capacity: up to 55 nails	Nail diameter: 2.8 - 3.3mm
Nail length: 50mm - 90mm	Bare tool only - Battery not included

Details

Details

Part No.	DEWDCN692N-XE
Brand	DeWalt
Unit Of Measure	Each
Vendor Part Number	DCN692N-XE
Weight (kg)	4.1
Voltage	18V
Dimensions (H x L) mm	338 x 345
