UTI38-44CU/1 Zoom

DIE HEXAGONAL CU 6mm2 38-6CU/1

Utilux Dies for 12 Tonne Tool
Part No. UTI38-44CU/1
UtiluxClick to see more products from Utilux
Features

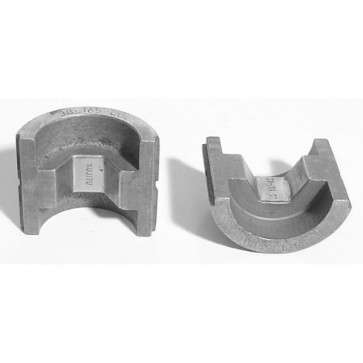

Utilux Crimping Dies

Utilux crimping dies for aluminium and copper connectors are precision engineered from EN26 high tensile steel, oil hardened to 50-52 Rockwell C, ensuring long life and minimal die wear. Each hexagon die set is engraved with "Utilux" on one of the die faces, and the die part number on the other, leaving an indent on the crimp for easy inspection and verification.

Utilux Hexagonal Crimp Dies

  • Hexagonal die sets for precision crimping of copper and aluminium connectors
  • Nest and indent die sets for special aluminium applications
  • Special 'steel' dies for crimping steel sleeves
  • The selection of the die type required depends on the connector to be crimped and the tool to be used.
  • Special size dies made to order.
Details

Details

Part No. UTI38-44CU/1
Brand Utilux
Pack Quantity 1
Unit Of Measure Each
Compendium Page # 355 (click to view)
