CONNECTOR, TYPE 2 TEST ADAPTOR

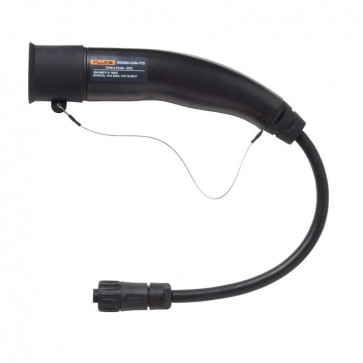

Fluke Connector, Type 2 Test Adaptor
Part No. FLUFEV300-CON/TY2
FlukeClick to see more products from Fluke
Features
Test the safety and functionality of electrical vehicle charging stations.

The FEV300 Test Adapter Kits are designed to test function and safety of charging stations mode 3 for AC charging. The adapter imitates an electric vehicle and opens up a charging cycle (activating voltage/current output), allowing you to conduct tests in combination with appropriate test instruments like an installation tester and/or an oscilloscope. With the FEV300 Adapter Kit, charging stations can be tested in accordance with IEC/EN 61851-1 and IEC/HD 60364-7-722.

Features & Benefits

  • Suitable to vehicle charging stations with charging mode 3
  • Fits to charging stations with EV socket-outlet type 2 and EV connectors for type 2
  • PE Pre-Test: With this safety feature the PE conductor will be tested for possible presence of dangerous voltage against earth
  • Proximity Pilot (PP) state "Cable Simulation": With PP State rotary switch the adapter can simulate various current capabilities of charging cables
  • Control Pilot (CP) state "Vehicle Simulation": With CP State rotary switch selector all charging states can be simulated
  • Separate phase indication by three LED lamps for easy check if voltage is present at the charging output
  • Measuring terminals L1, L2, L3, N and PE to connect test device like installation tester to perform safety and functional tests
  • Compatibility: Integrates into Fluke portfolio of test and measurement tools, by allowing direct connection through FEV measurement terminals
  • Simulation of CP error state "E"
  • Simulation of PE error state "F" (Earth fault)
  • Terminals for CP signal output to check communication between adapter (simulated electrical vehicle) and charging station. This can be measured by a ScopeMeter® or multimeter. The voltage level defines the charging modes and the duty cycle of this PWM (Pu
  • IP 54 rating: Dust and splashing water protected
  • Type 2 Plug: AC charging mode 3, suitable to IEC 62196-2 type 2 socket outlet or fixed cable with vehicle connector (type 2, 7P three-phase)

Applications:

  • Safety testing of charging stations
  • Functional testing of charging stations
  • Troubleshooting/repair of charging stations
Details

Details

Part No. FLUFEV300-CON/TY2
Brand Fluke
Unit Of Measure Each
Compendium Page # 567 (click to view)
Dimensions (W x H x D) mm 45 x 110 x 220 (without connection cable and test cable)
Weight (kg) 1
Ingress Protection Rating IP54
Operating Temperature -20°C to 40°C
