CLAMP METER 600A AC/DC 600V RESISTANCE, CAPACITANCE, DIODE

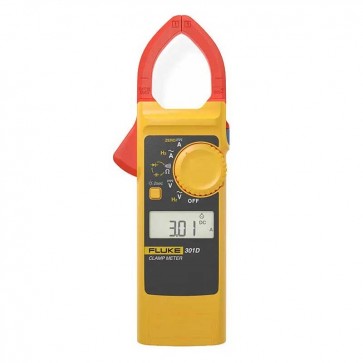

Fluke 301D Clamp Meter 600A AC/DC 600V, Resistance, Capacitance, Diode
Part No. FLU301D
Features
The Fluke 301D Blade Series AC/DC Clamp Meter is designed with lightweight and compact body, which allows you to carry it around in your pocket. The slim and thin jaw can easily fit into tightly packed wires. The Fluke 301D tests current, voltage, resistance, continuity, frequency (voltage and current), capacitance, and diode, etc. With AC/DC function, it can be applied to more application scenarios requiring DC testing, such as new energy of PV and wind power, new energy vehicles, communications, data centers, etc.

Features & Benefits

  • 10mm jaw can easily fit into tightly packed wires
  • 600A AC/DC range, 0.01A high resolution
  • Tests voltage, resistance, continuity, current frequency and voltage frequency
  • Not equipped with True RMS feature
  • Tests capacitance and diodes
  • Backlight
Details

Details

Part No. FLU301D
Brand Fluke
Unit Of Measure Each
Dimensions (H x W x L) mm 190 x 52 x 16
Battery Type 2 AAA, IEC LR03
Operating Time 500 hours (min)
Operating Temperature -10°C to +50°C
Weight (g) 132
