CABLEMASTER CMCPLUS, PULSA TOOL

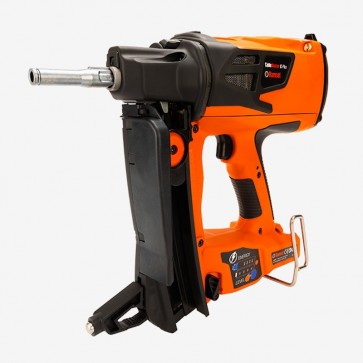

Ramset CableMaster™ C Plus® Gas Fastening Tool
Part No. RAMCMCPLUS
RamsetClick to see more products from Ramset
Related Products
Features
The CableMaster™ C Plus® is a powerful compact cordless gas fastening tool with 95j of power, which means installers can get the job done faster with reliable direct fixing for plumbing, data and electrical installations. Designed for a lasting, better fix into concrete, steel and masonry, the CableMaster™ C Plus® will install cable, conduit, trunking and a variety of other applications using the innovative gas technology that provides 10,000 shots per battery charge. Work more and charge less with CableMaster™ C Plus®.

Features & Benefits

  • 95J power – Consistent fixings even in extreme applications
  • 20 pin magazine – Compact size for light weight and improved access
  • Great line of sight – Slimline nose design enables great sight lines
  • Minimise dust exposure – Mitigate drilling and drastically reduce the risk of dangerous dust
  • Lithium-Ion battery – Fast charge, up to 10,500 shots between charges
  • Tool-less adjustment – Easily set depth of drive
  • Stop & Go technology – Power saving feature isolates battery when tool is not in use
  • Accessories – Easily removable fastener guide and magazine, optional 30 pin magazine for increased productivity
  • Greater tool clearance – Allows the tool to fit in close to edge applications
  • Removable support Leg – Ensures tool is at 90° to work surface for optimum fixings
  • Electronically controlled fuel injection – Ensures consistent power in a wide temperature range
  • Low maintenance – Designed to work in all Australian conditions
  • Fuel & battery gauges – Convenient LED display to help avoid running out of battery or gas
  • Soft grip on both sides of handle – ensuring a more comfortable installation experience
  • Belt hook shape – allows for 180° rotation
  • New top cap – easy cleaning for tool maintenance

Specifications

  • Power (Impact Force): 95J
  • Magazine Capacity: 20 pins
  • Actuation Force: 4.2kg
  • Intermittent Operation: 2 fixings per second
  • Fuel Cell Capacity: 750 shots (approx)
  • Battery Charge Capacity: 10000 shots (approx)
  • Fastener Length Range: 15 – 27mm in strip
  • Substrates: Concrete, Composite Steel Decking, Solid Brick, Precast Concrete, Steel Pre-stressed Concrete, Hollow Block Wall, Reinforced Concrete, Reinforced Prefabricated Concrete
Details

Details

Part No. RAMCMCPLUS
Brand Ramset
Unit Of Measure Each
Carton Quantity 1
Dimensions 315 x 345 x 112mm
Voltage 3.7V
Weight (kg) 3.4
Battery Type Li-Ion
Charge Time 105 min
Operating Temperature -15°C to +49 °C
Battery Capacity 2.5Ah
Videos

Ramset™ CableMaster™ C Plus® - Small AND MIGHTY
