CABINET, WALL MOUNT VERT, 4RU 650(W) x 230(D) x 600(H)mm

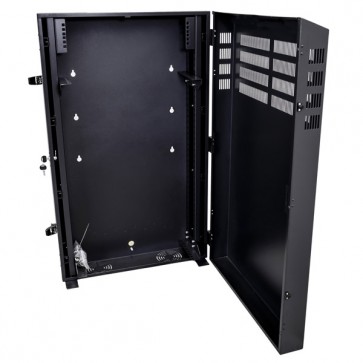

Vertical Wall Mount Cabinet

Part No. DYNRVWM0204S

Features

Vertical Wall Mount Cabinet

Allows servers and equipment to be mounted vertically up to 900mm, to conserve space without protruding from the wall as far as traditional wall mount cabinets	Static Loading: 100Kg
Convenient and quick wall mounting, 450mm wide mounting holes	Supplied complete. No assembly required
Vertical and horizontal M6 mounting rails included	Gloss black colour and easy clean surface
Cable entry knock outs top, bottom and rear	Optional dual fan kit is able to be fitted at the bottom of the cabinet
4U of vertical rackmount space and 2RU top horizontal mounting rail on all models	Material: SPCC quality cold rolled steel

Surface Finish: Degrease, acid pickling, rust prevention, parkerizing pure water cleaning and static electricity plastic painting	Compatible with 19" International Standard and Metrical and ETSI standards
2 Year Warranty on cabinet. Subject to use within the static loading specifications, operation within normal environmental conditions and adequate and appropriate mounting installation

Includes:

10x cage nuts

2x sets of hinges

Details

Details

Part No.	DYNRVWM0204S
Brand	DYNAMIX
Unit Of Measure	Each
Compendium Page #	481 (click to view)
Capacity	4U
Dimensions WxDxH (External)	650 x 230 x 600mm
Horizontal Mount Capacity	2U
