CABINET, 18RU, WALL MOUNT, PER 600(W) x 600(D) x 901(H)mm

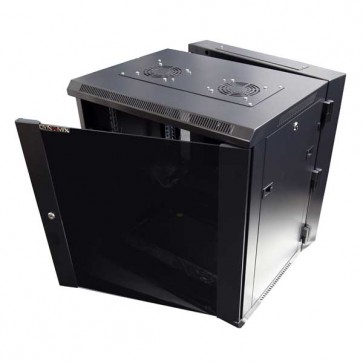

D Series 19" Swing Frame Wall Mount Cabinet with Perspex Door - Reversible Backmount

Part No. DYNRSFDS18-600-DET

Features

Swing Frame Wall Mount Cabinets

D Series 19" Swing Frame Wall Mount Cabinets - Reversible Backmount

Max loading: 60kg	Supplied complete, no assembly required
Gloss black colour, easy clean surface	Material: SPCC quality cold rolled steel
Thickness: Square hole strips 2.0mm, others 1.2mm to 1.5mm	Compatible with 19" International Standard and Metrical & ETSI standards
Surface Finish: Degrease, acid pickling, rust prevention and parkerizing pure water cleaning, static electricity plastic painting	Complies with IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB T3047.2-92 standards
2 Year Warranty on cabinet. Subject to use within the static loading specifications, operation within normal environmental conditions and adequate and appropriate mounting installation.	1 Year Warranty on fans

Includes:

10x Cage Nuts	1 x fixed shelf
2 x fans	Perspex door

Details

Details

Part No.	DYNRSFDS18-600-DET
Brand	DYNAMIX
Unit Of Measure	Each
Backmount Hole Size	320 x 450mm
Capacity	18RU
Dimensions WxDxH (External)	600 x 600 x 901mm
Size (m³)	0.46
Weight (kg)	43

Downloads

View the Dynamix Product Guide online
