AXLE JACK AIR POWERED 20 TONNE

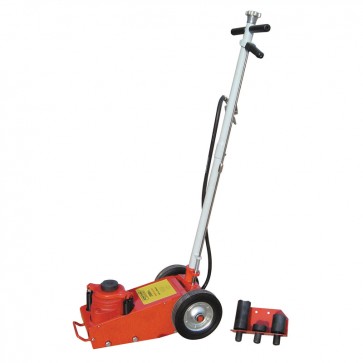

Armstrong Heavy Duty Air Powered Axle Jack - 20,000kg
Part No. ARMAAJ20
ArmstrongClick to see more products from Armstrong
Features

Features & Benefits

  • Heavy duty air powered axle jack 20,000Kg capacity
  • Compact design is ideal for tyre industry applications
  • Extension screw can be used to adjust height
  • Safety overload system prevents jack from being used beyond its rated capacity
  • Comes with four separate changeable head caps
  • Hydraulic stroke limitation
  • LCS lowering control system
  • Compact design is ideal for tyre industry applications

Specifications

  • Capacity: 20,000kg
  • Capacity Stages: 20,000kg
  • Stroke (mm): 115
  • Minimum Height (mm): 210
  • Maximum Height (mm): 325
  • Width (mm): 325
  • Overall Length (mm): 560
  • Load Cap Diameter (mm): Various
  • Power Source: Air
  • Extension (mm): 165
Details

Details

Part No. ARMAAJ20
Brand Armstrong
Unit Of Measure Each
Vendor Part Number ARMAAJ20
Width (mm) 325
Capacity 20,000kg
Height Extended (mm) 325
Height Folded (mm) 210
Weight (kg) 52
Length (mm) 560
