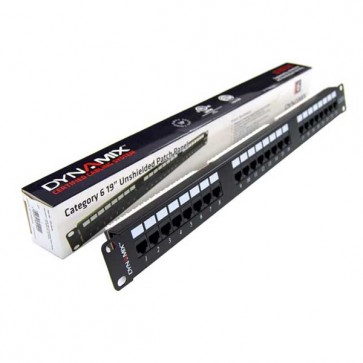

24-PORT CAT6 8P8C PANEL, 110 TERMINATION, 1RU LABELLING KIT

Cat6 UTP Certified Patch Panel with Labelling Kit
Part No. DYNPP-C6-24L
Features

Certified Patch Panels & Jacks

Cat6 UTP Certified Patch Panels

  • Cat6 Patch panel exceeds TIA/EIA-568-B.2-1 Cat6 and ISO 11801 2nd edition Class E and EN50173-1 standards
  • Backward compatible to Cat5e/5/3
  • Supports termination wiring (T568A/B)
  • Colour: Black
  • Material: 1.6mm steel plate
  • Installation: 19" frame/cabinet
  • Jack wiring: 8p 100-micron inch Gold Plated over 100-micron inch nickel
  • Plug insertion life: 750 cycle min.
  • IDC insertion life: 200 cycle min.
  • Conductor: 22~26AWG
  • Approvals: UL, ETL and 3P Certifi ed
  • Type: Dual Type IDC with plastic labelling kit
  • Ports: 24
Details

Details

Part No. DYNPP-C6-24L
Brand DYNAMIX
Unit Of Measure Each
Compendium Page # 471 (click to view)
