24-PORT CAT5E 8P8C PANEL, 110 TERMINATION, 1RU LABELLING KIT

Search:

All

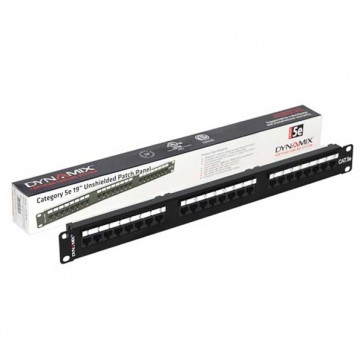

Cat5e UTP Certified Patch Panel with Labelling Kit

Part No. DYNPP-C5E-24L

Features

Certified Patch Panels & Jacks

Cat5e Patch panels exceed ANSI/TIA/EIA568-B.2, TSB67 Cat5e, ISO/IEC11801 & EN50173 standards	Backward compatible to Cat5/3
Supports termination wiring (T568A/B)	Colour: Black
Material: 1.6mm steel plate	Installation: 19" frame/cabinet
Jack wiring: 8p 100µ inch gold plated over 100µ Inch nickel	Plug insertion life: 750 cycle min.
IDC insertion life: 200 cycle min.	Conductor: 22~26AWG

Approvals: UL, ETL and 3P Certified	Type: Dual Type IDC with plastic labelling kit
Ports: 24
