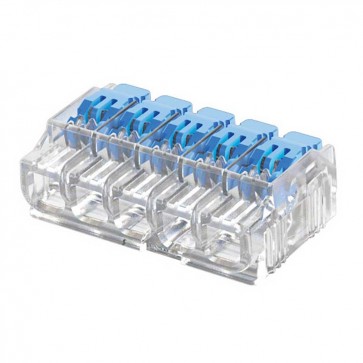

Ideal Electrical Connector, 5 Port GEN II Lever 0.14-4mm², 32A (Jar of 40)

CONNECTOR, 5 PORT GEN II LEVER 0.14-4mm2, 32A [40] JR

Ideal Electrical Connector, 5 Port GEN II Lever 0.14-4mm², 32A (Jar of 40)

Part No. IDL30-0095J

Features

The IDEAL Lever connectors utilise the latest connection technologies and can accommodate multiple wires of different types of sizes. It offers a fast, simple and cost-effective alternative to terminal strips allowing electrical professionals to save time and money on site while achieving easier, more consistent terminations for wires up to 4mm2 (12AWG) and 32 Amps.

Features & Benefits

For use in all applications up to 32A including lighting, access control, radial and final ring circuits	Releasable connector - for solid, stranded and flexible wires
Innovative levers - opens in the opposite direction of insertion points	Compact design - suits tight spaces
Easy to use - no need to lift the levers when using on solid wire	Continuity check port - for testing
Clear shell - allows for verification of connection	Secure your cables in seconds - no screwdriwer, no crimping, just strip, push, connect

Wire Crimping Range

0.2 mm2 to 4.0 mm2 (24 - 12 AWG) for solid and rigid stranded wires (= 7 strands)

0.14 mm2 to 4.0 mm2 (24 - 12 AWG) for flexible wires

Specifications

Rating: IEC 60998 - 32A, 450V, 85°C (ambient) / UL 486C - 600V, 105°C (working)	Approvals: Compliant with AS/NZS IEC 60998.1 and AS/NZS 60998.2.2 connecting device standards and UL 486C
Approvals:11:11CE, UKCA, UL and ENEC approved

Details

Part No.	IDL30-0095J
Brand	Ideal Electrical
Pack Quantity	40
Unit Of Measure	Jar
Vendor Part Number	30-0095J
Width (mm)	30.4
Height (mm)	8.8
Length (mm)	18.6
