TOOL REMOTE CRIMP HEAD 13 TONNE 6~300mm2

Search:

All

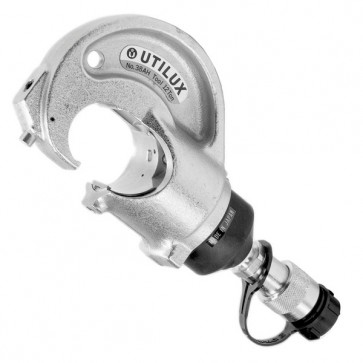

C' Frame General Purpose Compression Head, includes Coupling

Part No. UTI#41AH/1

Features

Utilux 'C' Frame General Purpose Compression Head

Range: Up to 300mm²	Input Required: 700 bar 10,000 psi, single acting pump
Oil Volume Required: 53cc	Output: 11.3 tonnes
Ram Stroke: 32mm	Die Set: '38' type dies
Length: 276mm	Weight: 4.9kg (tool only with die set loaded)
Packaging: Plastic carry case, with die compartment
